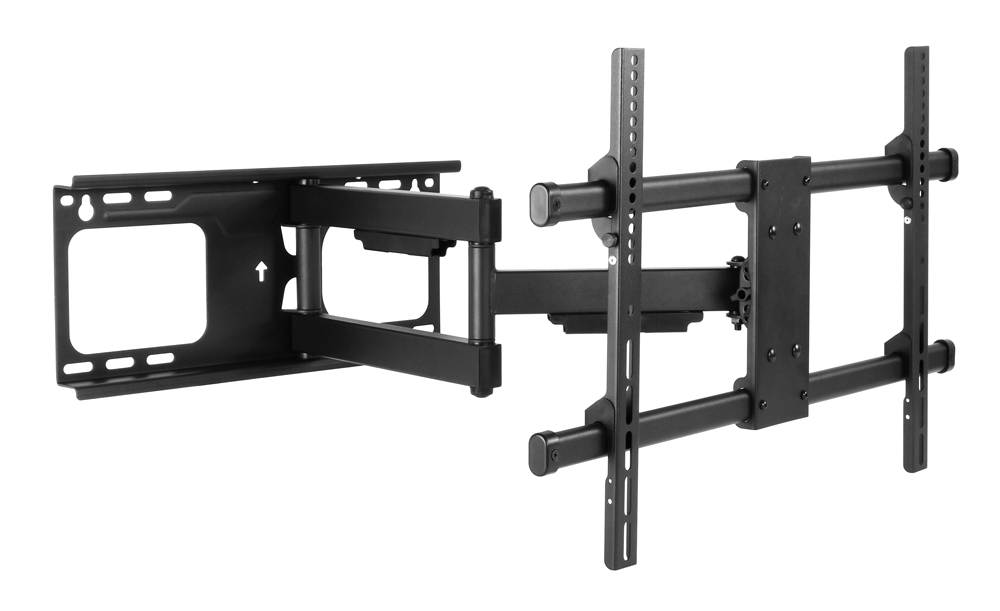

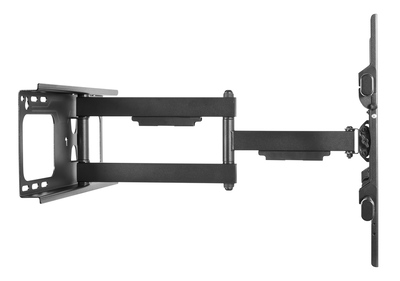

BRATECK επιτοίχια βάση τηλεόρασης LPA49-463D, 37-70", 60kg, heavy duty, full motion

Τεχνικά Χαρακτηριστικά:
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)
Pipe Size: 40 x 25x 1.5mm, 40 x 20 x 1.5mm
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 615 x 685 x 430mm
Fit Screen Size: 37"-70"
Fit Curved TV: Yes
Mounting Hole Pattern : VESA & Universal
VESA Compatible: 200×200, 300×300, 400×200, 400×400, 600×400
Max. VESA: 616x410mm
Weight Capacity: 60kg (132lbs)
Strength Tested: 4 Times Approved
Profile: 69~615mm (2.7"~24.2")
Tilt Range: +5°~-15°
Swivel Range: +90°~-90°
Screen Level: +3°~-3°
Screen Freely Tilting: Yes
Installation: Double Stud(406mm/450mm),Solid Wall
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: Yes

Περιεχόμενα συσκευασίας:
βάση
βίδες
εργαλεία
user manual
